An electrician may also find hidden taps in walls and attics — in raised homes, underfloor wiring is easy to reach and easy to hack — turning a \"bad breaker\" complaint into a \"bad wiring\" answer, and finding them takes a tracer and patience.

One note for older homes, since it affects diagnosis: two-wire circuits have no equipment ground wire — but a GFCI doesn't need one to work. It trips when the hot-to-neutral current imbalance reaches roughly 4–6 milliamps; an actual fault still needs a current path to flow, the GFCI just doesn't need that path to be a ground wire. When replacing a two-prong receptacle with a GFCI receptacle, code requires marking it \"No Equipment Ground\" (and \"GFCI Protected\" where applicable) — NEC 406.4(D)(2).

WHERE YOUR JOB ENDS AND THE ELECTRICIAN'S BEGINS

You can safely reset properly, unplug loads and add them back one at a time, press TEST and RESET on GFCI devices, and look, listen, and smell from outside the panel.

Everything inside the panel belongs to a licensed electrician: re-terminating loose connections, replacing breakers, tracing hidden splices, correcting miswired receptacles. The wrong breaker type or rating defeats the protection the circuit was designed around. In Louisiana, electrical permits are issued by the local authority having jurisdiction, and electrical work generally must be performed or supervised by an appropriately licensed electrical contractor. In New Orleans, that is commonly a Class A Electrical Contractor — a legitimate contractor handles the permit for you. Check with your parish or municipal authority having jurisdiction for the local specifics.

WHAT TO ASK THE CONTRACTOR

These separate diagnosticians from parts-changers:

1. \"Will you check the load on the circuit before replacing anything?\" A pro measures; a parts-changer swaps the breaker and bills you.

2. \"How do you find a hidden splice or a buried box?\" Listen for a circuit tracer or toner, not \"we'll open up some drywall and see.\"

3. \"Do you pull the permit, and is the fee in your price?\" Panel and service work goes through the local authority having jurisdiction; the answer should be yes and yes.

4. \"Can you show me the failed part and explain why it failed?\" A real pro can. A pretender changes the subject.

If the pattern points past the homeowner toolkit, ABest Pros offers a free project review — call (504) 552-3785. The trip pattern is the most useful thing you can tell us.

",{"_242":305,"_306":307,"_69":308},"ODUzNDM5NA==","What a Professional Checks","

IN ORDER

1. The full OFF-then-ON reset. A tripped handle usually sits in a middle position — not fully ON, not fully OFF — and must travel all the way to OFF before it will latch back to ON: push firmly to OFF, then firmly to ON. On Square D QO breakers — common across Greater New Orleans — a tripped breaker shows a small red Visi-Trip indicator window. Eaton CH breakers trip all the way to OFF rather than parking in the middle (the trip-flag window is specific to Eaton's CHF family). On most other breakers, the middle handle position is the tell. Some AFCI/GFCI and dual-function breakers also carry a small indicator light whose blink codes help an electrician narrow down the fault — the codes vary by model, so check the breaker label or the manufacturer's instructions.

2. Eliminate the loads. Unplug everything on the dead circuit — not just switched off, unplugged — and reset. If the breaker holds, plug things back in one at a time until it trips. The last thing you plugged in is your clue — it may be a failing device, or it may simply be the load that pushed the combined total past the circuit's limit: a failing space heater, a damaged cord, a window AC drawing more than it should.

3. Read the trip pattern — as a clue, not a verdict.

— Trips instantly, even with nothing plugged in: points toward a short circuit, damaged wiring, failed hardwired equipment, or a failing breaker. Stop resetting it, leave it off, and call a licensed electrician. (If the circuit has GFCI protection, a ground fault may also be involved.)

— Trips after minutes of normal use: usually overload. A 15-amp, 120-volt circuit tops out around 1,800 watts — and NEC 210.20(A) requires the overcurrent device to be rated at least 125% of any continuous load, so a standard breaker is effectively limited to 80 percent for loads running 3 hours or more: about 12 amps, or roughly 1,440 watts at 120 volts. A space heater plus a hair dryer walks right past that. But timing alone can't prove overload; if it keeps happening, get it checked.

— Trips randomly, on light loads, or at odd hours: suspect a loose connection or a miswired device — a breaker can also fail. A loose connection at the breaker heats the breaker itself, making it trip earlier than it should; a loose connection downstream heats at that joint instead — localized heating, insulation damage, and potential arc-fault and fire risk, even if the breaker never trips. An electrician checks for overloads and bad connections first, then may test or replace a suspect breaker. This pattern deserves a pro.

A pro uses de-energized continuity and resistance checks, voltage measurements under load, circuit tracing, and inspection of terminations to find where current is leaking or a conductor has failed.

One Gulf South wrinkle worth mentioning to your electrician: the thermal half of the breaker is calibrated for ordinary room temperatures, so a panel baking in an attic or sun-struck garage in August runs closer to its trip point — high ambient heat can nudge a marginal circuit into nuisance-tripping, especially during afternoon peak heat.

4. Check GFCI TEST/RESET on the circuit. A \"dead outlet\" is frequently a tripped GFCI somewhere else — the bath GFCI may protect the garage outlet, the kitchen GFCI the outdoor one. Press RESET firmly; if it will not stay reset, something downstream has a ground fault — or the GFCI device itself has failed. The tripped GFCI is often not the dead outlet — (link text \"a guide to every receptacle face in a Greater New Orleans home\" → https://abestpros.com/resources/outlet-and-receptacle-types-in-greater-new-orleans).

5. Look, listen, and smell. From outside the panel — never remove the cover — check for warmth on the panel door, buzzing, a fishy or burning odor, or scorch marks around a breaker. Any of those means the breaker stays OFF and a pro gets called. These are also (link text \"warning signs of a failing panel\" → https://abestpros.com/resources/panel-warning-signs-new-orleans) — the problem isn't always the breaker.

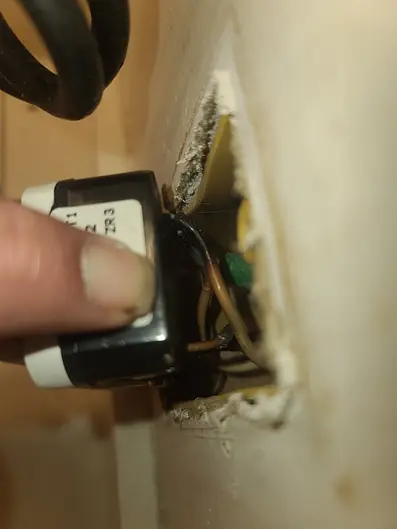

6. Suspect the work, not just the parts. Some tripping breakers are caused by what a previous installer left behind: splices outside a box, a box buried behind drywall, backstabbed receptacles with loosened push-in terminals, or outlets wired wrong from the start. During an ABest Pros receptacle check on October 12, 2026, Jacob's Klein ET310 tester flagged a lost neutral — the neutral conductor wasn't completing its return path. It looked normal until tested. A lost neutral can be more than a dead receptacle: on a circuit with shared neutrals or multiple outlets, an open neutral can create abnormal voltage between devices and damage electronics. Finding exactly where the neutral path is interrupted takes tracing — electrician's work. And sometimes the evidence is visible once the device comes out of the wall — scorched insulation on the wires behind a pulled receptacle, the kind of heat damage an electrician looks for behind a \"bad breaker\" complaint.

","TEXT_IMAGE_RIGHT",{"_242":318,"_306":319,"_69":308},"https://d13cw1lxlociqy.cloudfront.net/ik7sv4lijkzhrhgb2yb35lekh0h1","Uploaded image","ODUzNDM3Mw==","Troubleshooting Your Circuit Breaker","

A tripping breaker is usually responding to an overload or electrical fault — but the breaker itself can fail too. The trip is still a message — it's just worth making sure the messenger is working.

THE SHORT ANSWER

A breaker that trips is usually responding to an overload or electrical fault; sometimes the breaker itself is failing. Unplug what you can and reset it once — and only if there are no signs of heat, buzzing, burning odor, or damage. If it trips again, especially with loads unplugged, leave it off and call an electrician. And a breaker that resets and holds isn't automatically healthy: a loose connection, damaged wire, or weakening breaker can hide behind a successful reset. The timing of the trip can help narrow down the cause, but it does not identify it by itself.

WHAT YOU ARE SEEING IN YOUR HOME

The kitchen goes dark, or the bedroom outlets die while the lights stay on. You flip the breaker back on and it either snaps right off or holds for an hour and quits. Maybe it only happens with the space heater and hair dryer running together. Maybe one outlet is dead while its breaker holds fine — you press the TEST/RESET buttons on the receptacle face, if it has any, and nothing changes. (Link text \"a walk-through of the receptacle types found across Greater New Orleans\" → https://abestpros.com/resources/outlet-and-receptacle-types-in-greater-new-orleans)

WHAT IS ACTUALLY HAPPENING INSIDE THE PANEL

A standard breaker is thermal-magnetic. The thermal half is a bimetal strip that heats as current flows; sustained overcurrent bends it slowly until it trips, which is why overloads take seconds or minutes. The magnetic half is an electromagnet that snaps open the instant current spikes to short-circuit levels. Overload is slow heat; short circuit is instant. That is why when it trips helps narrow the cause — though timing alone never proves it.

A ground fault is a third, separate event: current leaking to ground through an unintended path — a nicked wire touching a metal box, water in an outdoor receptacle. Standard thermal-magnetic breakers do not detect ground faults; GFCI breakers and GFCI receptacles both do, tripping when the hot-to-neutral imbalance reaches roughly 4–6 milliamps (Class A). Arc-fault (AFCI) and dual-function (AFCI plus GFCI in one breaker) breakers add a fourth layer, using electronic detection to identify arcing conditions. Most 120-volt general-purpose branch circuits run on 15- or 20-amp breakers; dryers and ranges typically sit on 30, 40, or 50-amp 240-volt breakers.

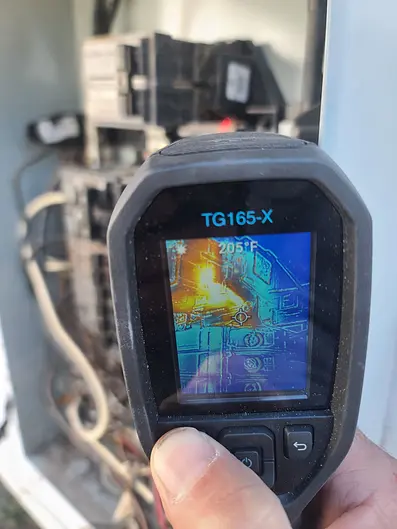

A thermal camera makes the invisible visible: an ABest Pros inspection recorded a 205°F infrared reading at a breaker — far above the temperature expected for its load and ambient conditions. A reading like that warrants immediate investigation for a high-resistance connection or overloaded termination. (Infrared readings depend on the exact surface measured, the load, ambient temperature, and camera setup, so an electrician always evaluates the result in context.)
